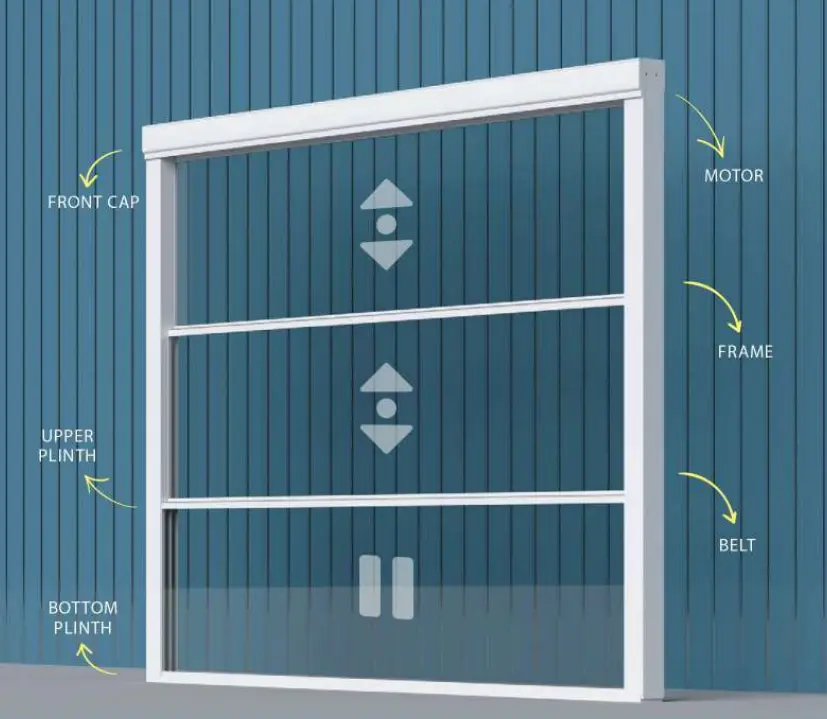

Automatic glass system, an innovative enclosure/protective system is motorized. The glass is 10mm tempered or 19mm double-glazed. The glasses move vertically through 3 channelled rails. The up and down movement of the glass is made possible by imported Elatech belt, sling pulley and the motor, all of which function proportionally. Actually, the heart of the system is the fixed glass. The other mobile glasses are positioned on it, which means that the glasses function like a parapet when the glasses are all rolled down.
Becker motors, ideal for automatic glass systems, are integrated with belt pulleys and feature die-cast side caps with bearings to distribute glass weight and reduce motor strain, enhancing reliability.
The front cap facilitates easy access for motor inspections without needing to remove all glasses or major parts, and its sealed, channel-locked design reduces noise from vibrations.
The guillotine glass system features a unique Italian timing belt reinforced with steel wires, capable of lifting up to 500 kg. It’s secured using a special pressing apparatus, reducing the risk of breakage.
The glass is framed with a profile for endurance which maximizes the functionality of the system. Additionally, an aesthetic look stands out as the seals that aim to isolate wind are concealed within the grooves on the sides.
The top plinth serves simply like a cap covering the minimal gaps between glasses which also provides a monolithic look. In terms of safety, it eliminates the likelihood of jamming of any subject between the glasses and the plinth itself thanks to its 20° moving option.
The bottom plinth offers much better insulation against heat, noise and liquid as well as eliminates measurement miscalculation and eases construction.
