As in all our systems, high strength is provided in our Pergola Prime product thanks to the correct equipment and intermediate fasteners with connection methods suitable for aluminum construction structural engineering.
Sound, water, heat insulation is provided and light leaks are prevented thanks to specially produced wicks and gaskets suitable for system ducts without using silicone and similar insulation materials.
Pergola Prime design for easy and fast assembly and its completely disassembled structure provide a technical privilege.
With its improved drainage system and special outlet, it offers flexible evacuation without damaging the building and structural elements.
Panels and light cutter wicks positioned in various parts of the system reduce the turbulence effect that may occur during operation and eliminate isolation weaknesses to a great extent.
Pergola Prime combines the modern lines of bioclimatic architecture with the naturalness of cultural and traditional hanging gardens, always offering a fresh, cool and renewed feeling.
The lighting profile designed for the system, unlike its counterparts, offers the opportunity to illuminate both the panel and the environment, making your living space privileged.
Designed with first class raw materials and our own moulds, the panels can be positioned at different angles according to weather conditions and user preference, allowing air conditioning in all weather conditions.
Panels and light cutter wicks positioned in various parts of the system reduce the turbulence effect that may occur during operation and eliminate isolation weaknesses to a great extent.
Pergola Prime combines the modern lines of bioclimatic architecture with the naturalness of cultural and traditional hanging gardens, always offering a fresh, cool and renewed feeling.
The lighting profile designed for the system, unlike its counterparts, offers the opportunity to illuminate both the panel and the environment, making your living space privileged.
Designed with first class raw materials and our own moulds, the panels can be positioned at different angles according to weather conditions and user preference, allowing air conditioning in all weather conditions.

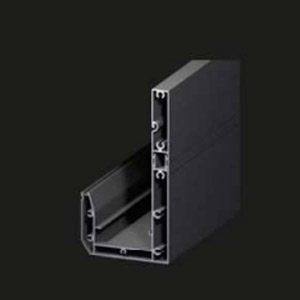

RAIN GUTTER
Rain Gutter, 163,5×156 mm in size and weighs m/732g. Beam profile is 136,5×30 mm in size and weighs m/251g. It reaches a section height of 30 cm in total. Rain Gutter prevent water overflows that may occur thanks to its large reservoir. When the profiles are connected to each other, they form an integrity and are integrated with a double claw lock system. Thanks to the high strength resulting from this, long openings can be obtained.

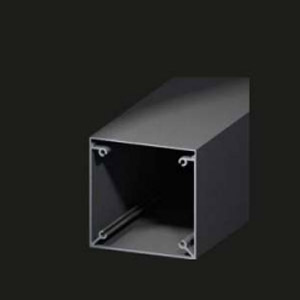

FRONT POST PROFILE
Front Post profile is 160×160 mm in size and weighs m/6050 g. The front posts are mounted by inserting a pvc pipe into the water drainage area with its special claw cap structure and the water from the gutter is discharged with the help of pvc. The front posts are connected to the ground with 6 mm aluminum flange and in this way, the appearance of screws that will disrupt the aesthetics is hidden. Oxidation

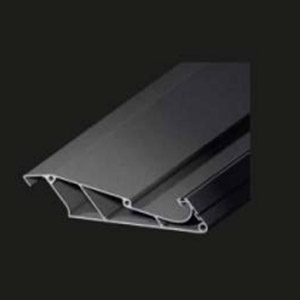

PANEL
Panel profiles are 20.6 mm wide and weigh m/4630 gr. Thanks to the hidden slope inside the panel, water accumulation that may occur is prevented. Thanks to the special reservoir structure at the top of the panel, the substances that may accumulate on the system are prevented from falling inside during the opening of the system.

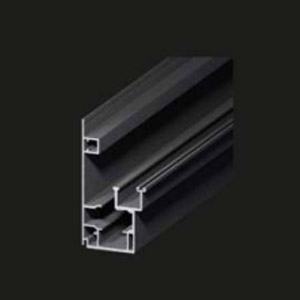

RAIL
The rail profile is 70×137 mm in size and weighs m/2877 gr. The rail profile also provides ease of installation thanks to its integrated structure.

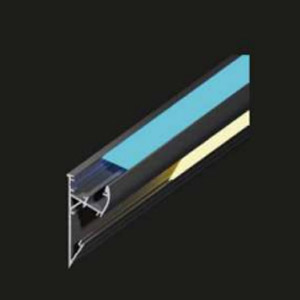

LED PROFILE
24 Volt led lighting is used in aluminium panel system.
In a single profile, there is both standard lighting (700 lumens-3000 kelvin-daylight) and ambient RGB lighting facing the panel.
At the same time, the fact that the led profile is independent of the gutter ensures that the led lighting system works smoothly and has a long life.

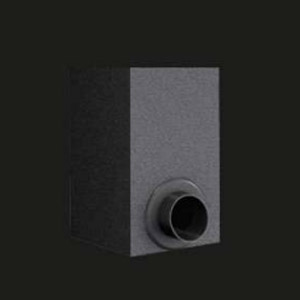

DRAINAGE
With the cover of the post profiles, water can be carried through the strut with pimash, and in addition to being able to exit from the desired point, painted finish elements in aluminium system colour are used at the exit points. Flexible and suitable for structures, the water discharge system offers the opportunity to exit from all points of the system.
CORNER ADAPTOR
The system’s corner adapters increase profile compatibility and eliminate water leakage issues by avoiding 45-degree cuts and using first-class rubber gaskets instead of silicone sealants.
COMPLEMENTARY STRUCTURE
The system features specially designed profiles and gaskets for all sides, protecting internal components from external conditions and reducing maintenance by preventing drainage blockages. It also offers a cohesive aesthetic appearance from every angle.
